Precision Gear Manufacturing for Demanding Industrial Applications
Rapzo Technology provides precision gear manufacturing services for engineers, OEM buyers, and industrial product developers worldwide. From custom spur gears to complex helical and bevel gear systems, we deliver accurate, reliable gear components backed by strict quality control and experienced manufacturing expertise.
What Is Gear Manufacturing?
Gear manufacturing is the process of producing toothed mechanical components — gears — that transmit torque and motion between rotating shafts in mechanical systems. Precision gear manufacturing requires advanced machining processes, careful material selection, and strict dimensional control to ensure reliable performance in demanding applications.
At Rapzo, gear manufacturing combines CNC machining, gear hobbing, gear grinding, and precision inspection to produce custom gears that meet engineering specifications. Our gear production capabilities support a wide range of gear types, materials, and tolerance requirements.
From single prototype gears for design testing to batch production for mechanical assemblies, Rapzo provides consistent quality and responsive service throughout the gear manufacturing process.
- Custom gear production based on drawings or CAD files
- Tight dimensional tolerances and surface finish control
- Integrated machining, grinding, and inspection workflow
- Support from prototype validation to production manufacturing
- Experienced engineering team for technical review and DFM support

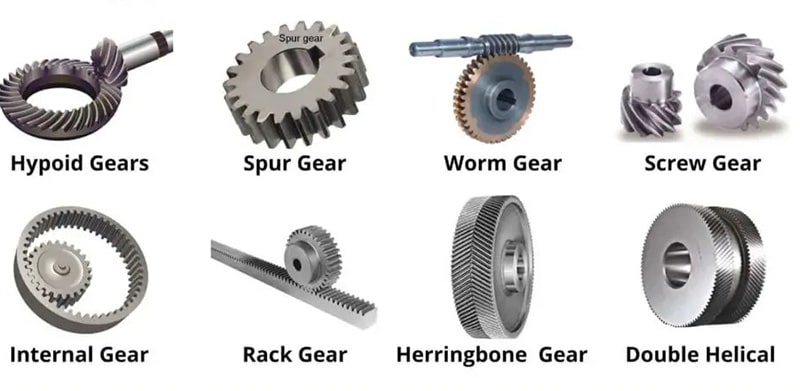

Types of Gears We Manufacture
Rapzo manufactures a wide range of precision gear types to support diverse mechanical design requirements across industries.
| Gear Type | Key Features | Typical Applications |
|---|---|---|
| Spur Gear | Straight teeth, simple design, high efficiency | Gearboxes, conveyors, industrial drives, general power transmission |
| Helical Gear | Angled teeth, smoother and quieter operation | Automotive transmissions, machine tools, high-speed industrial equipment |
| Bevel Gear | Conical shape, transmits motion between intersecting shafts | Differential systems, right-angle drives, robotics, power tools |
| Worm Gear | High reduction ratio, self-locking capability | Lifting equipment, conveyor systems, speed reducers |
| Rack & Pinion | Converts rotary to linear motion | Linear motion systems, CNC machines, steering mechanisms |
| Internal Gear | Compact design, internal tooth profile | Planetary gearboxes, compact transmission systems |
Our Gear Manufacturing Capabilities
Rapzo combines advanced machining equipment, grinding expertise, and custom manufacturing capabilities to deliver precision gears that meet demanding engineering requirements.
Gear Machining
CNC gear machining covers hobbing, milling, and turning processes to produce accurate gear tooth profiles across a wide range of gear types and sizes. Our machining capabilities support both prototype and production quantities with consistent dimensional accuracy.
- CNC hobbing and gear milling
- Tight tolerance gear tooth profiles
- Suitable for spur, helical, and bevel gears
- Prototype and batch production support

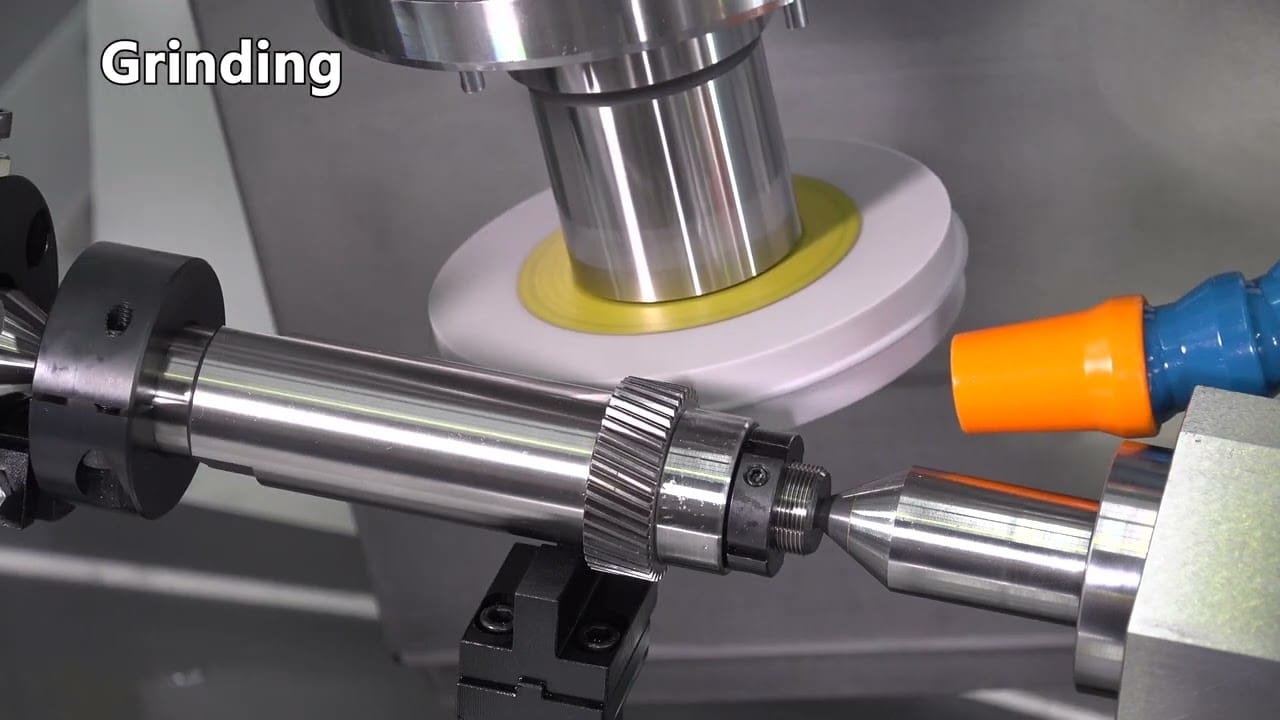

Gear Grinding
Gear grinding is used as a finishing process to achieve higher precision, improved surface quality, and tighter tolerances beyond what machining alone can deliver. This process is essential for gears operating in high-load or high-speed environments.
- High-precision surface finish after heat treatment
- Tighter dimensional tolerances
- Improved gear tooth accuracy and contact quality
- Suitable for demanding industrial applications

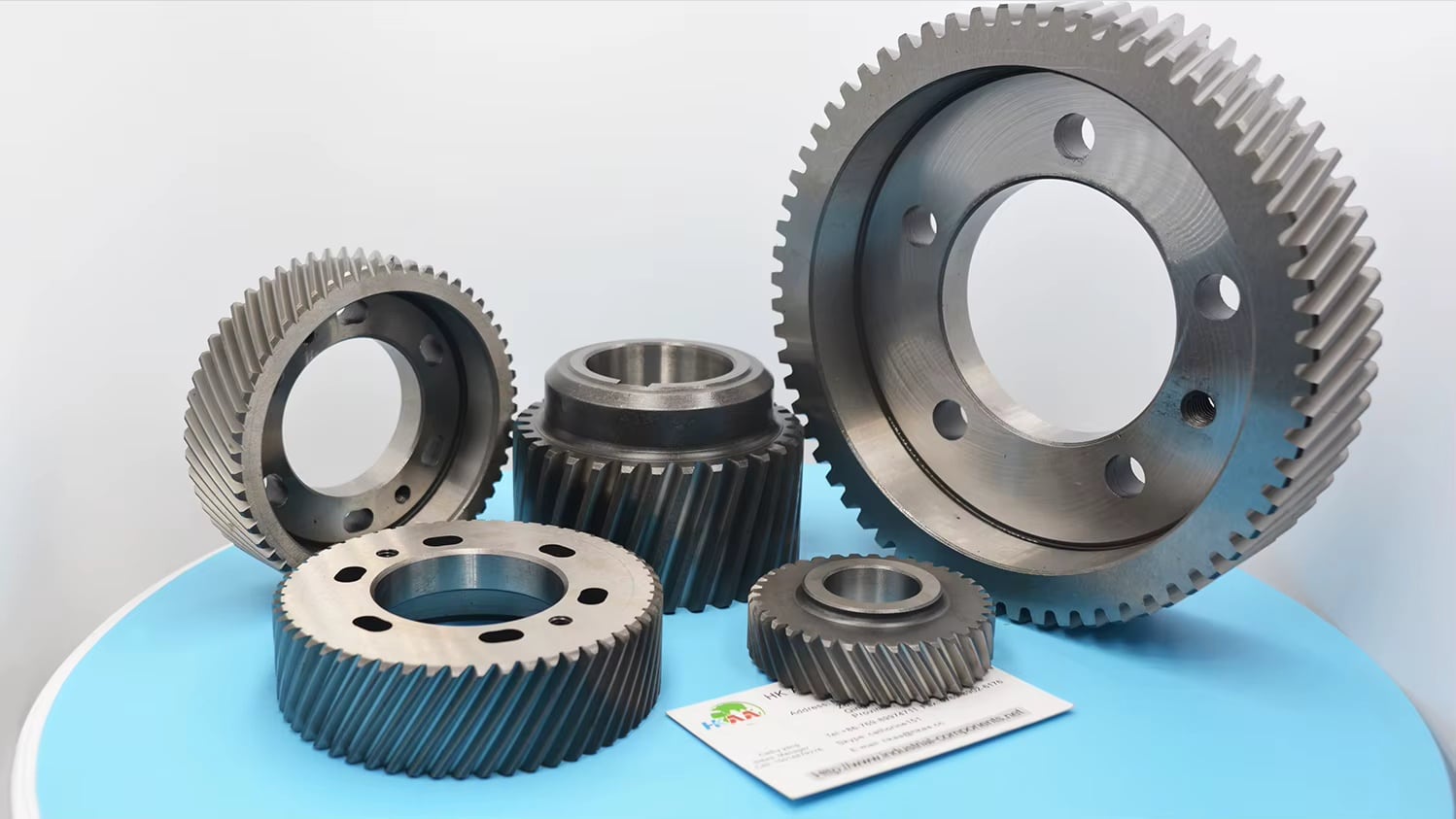

Custom Gear Manufacturing
Rapzo supports fully custom gear manufacturing based on customer drawings, CAD files, or application-specific requirements. Our engineering team reviews each project to confirm manufacturability and recommend the most suitable production approach.
- Custom gear design review and DFM support
- Non-standard gear configurations accepted
- Multiple material options available
- Flexible order quantities from prototype to production
Gear Manufacturing Process
Every gear manufacturing project at Rapzo follows a structured and controlled process to ensure dimensional accuracy, surface quality, and production consistency.
Step-by-Step Process
Drawing Review & Engineering Confirmation
Our engineering team reviews customer drawings or CAD files to confirm gear specifications, tolerances, material requirements, and manufacturability before production begins.
Material Preparation & Incoming Inspection
Raw materials are selected based on application requirements and inspected upon receipt to verify material grade, hardness, and dimensional conformance.

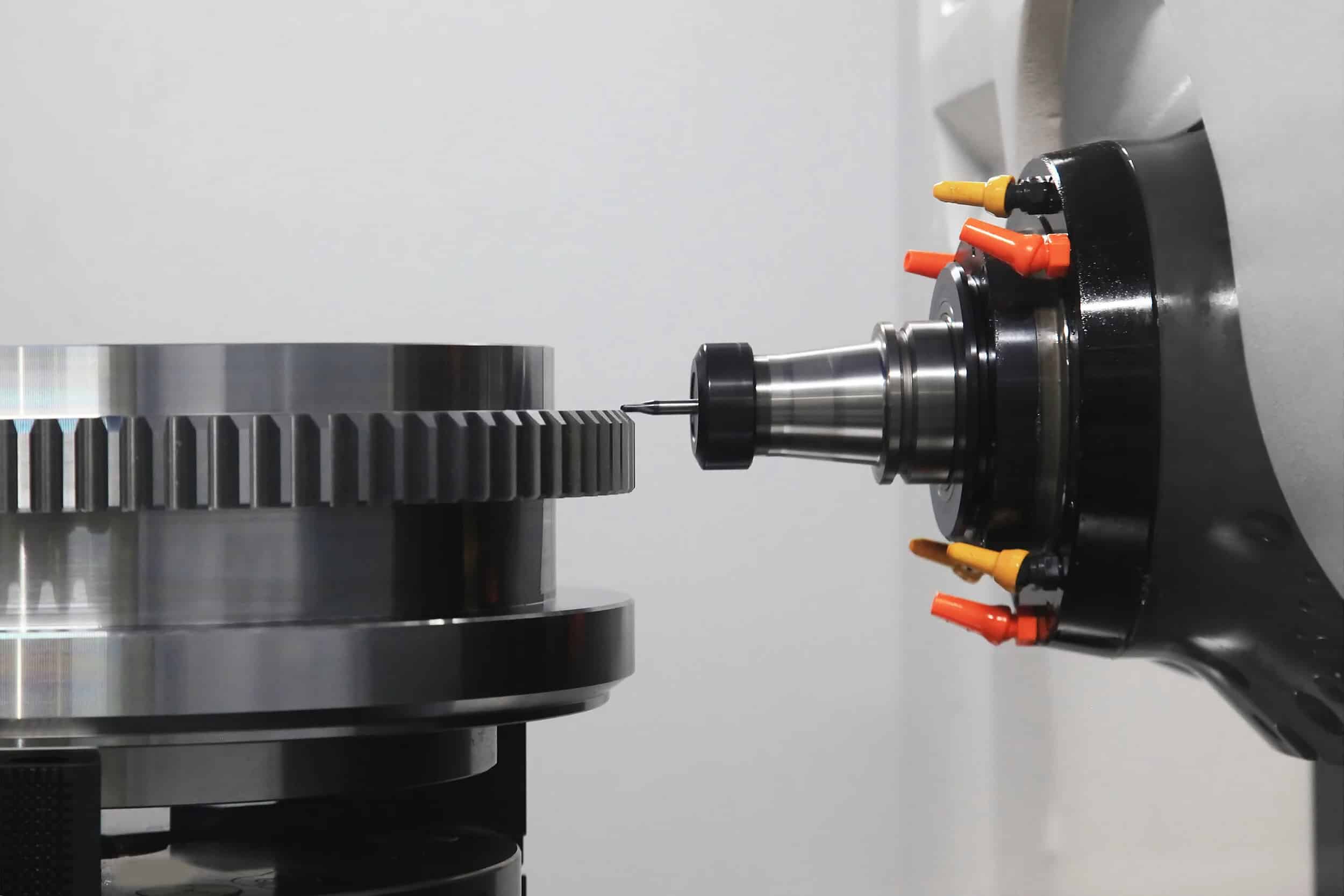

CNC Gear Machining
Gear teeth are cut using CNC hobbing, milling, or turning processes. Real-time monitoring ensures dimensional accuracy and consistent tooth profile quality throughout production.
Heat Treatment & Gear Grinding
Where required, gears undergo heat treatment to improve hardness and wear resistance, followed by precision gear grinding to achieve final tolerances and surface finish specifications.
Final Inspection & Delivery
Every gear undergoes 100% dimensional inspection using CMM and precision measuring instruments. Inspection reports and batch traceability records are provided with each delivery.

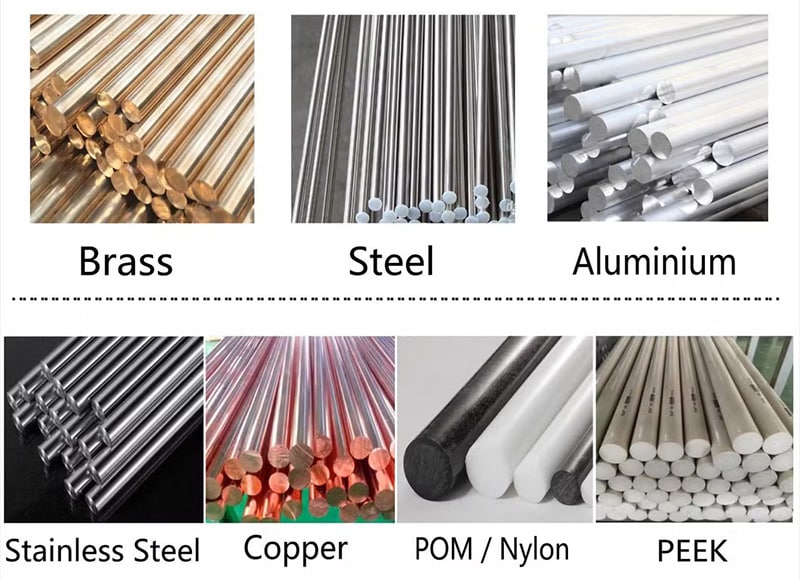

Materials Used in Gear Manufacturing
Material selection is a critical factor in gear manufacturing. The right material determines the gear's strength, wear resistance, fatigue life, and suitability for the operating environment. Rapzo works with a range of engineering materials to meet different application requirements.
Alloy Steel
The most common gear material. Excellent strength, hardness, and wear resistance. Suitable for high-load and high-speed applications after heat treatment.
Stainless Steel
Offers corrosion resistance combined with good mechanical properties. Suitable for food processing, medical, and marine environments.
Brass & Copper Alloys
Good machinability and self-lubricating properties. Commonly used in worm gears, light-duty drives, and applications requiring low noise.
Engineering Plastics (POM, Nylon)
Lightweight, self-lubricating, and corrosion-resistant. Suitable for low-load applications, consumer products, and environments where metal gears are not appropriate.

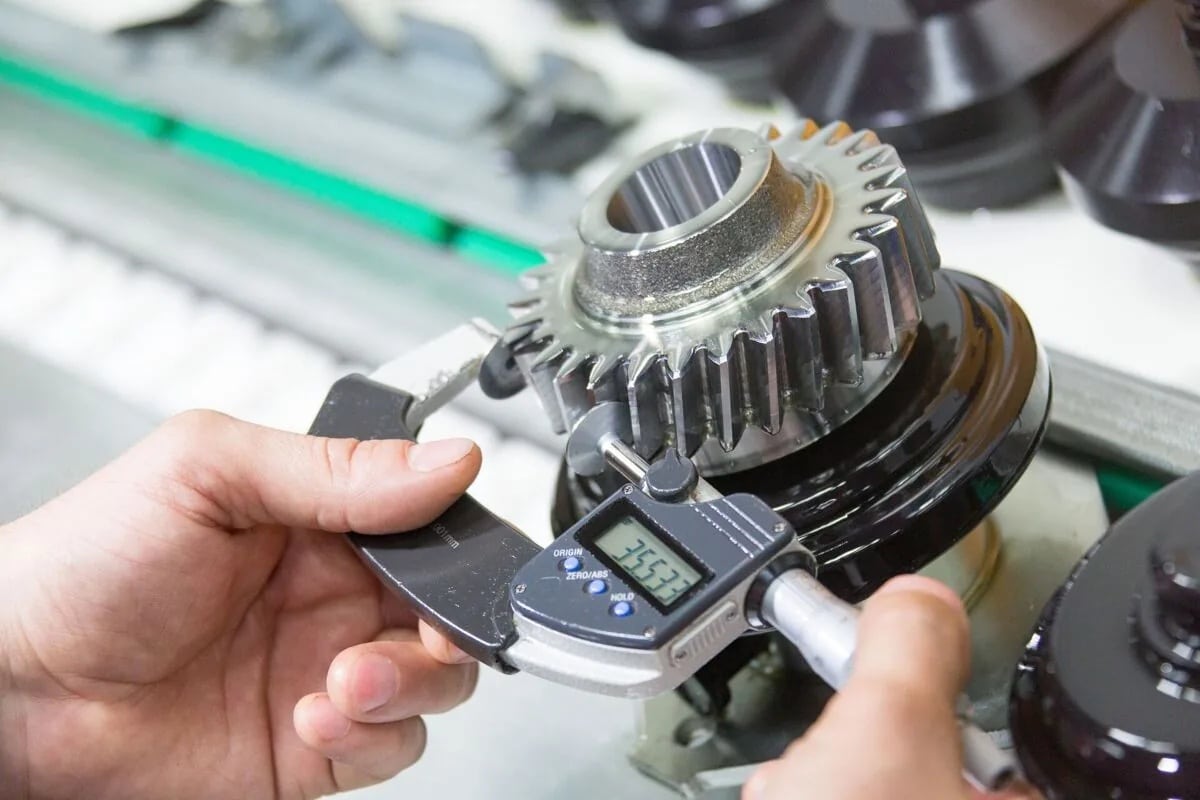

Precision Inspection and Quality Control
Quality control is embedded into every stage of Rapzo's gear manufacturing process. From incoming material inspection to final dimensional verification, we apply systematic quality management to ensure every gear meets specification and delivers reliable performance.
- Incoming material inspection — grade, hardness, and dimensional verification
- In-process dimensional checks during CNC machining
- Gear tooth profile and pitch accuracy measurement
- CMM (Coordinate Measuring Machine) inspection for complex geometries
- Surface roughness measurement after grinding
- 100% final inspection before shipment
- Batch-level traceability records and inspection reports
Industries We Serve
Rapzo supplies precision gear components to customers across a wide range of industries that require reliable mechanical power transmission and motion control solutions.
Industrial Machinery
Precision gears for gearboxes, conveyor systems, industrial drives, and heavy-duty power transmission equipment.
Automotive & Transportation
Custom gear components for transmission systems, differential assemblies, steering mechanisms, and drivetrain applications.
Robotics & Automation
High-precision gears for robotic joints, servo drive systems, linear actuators, and automated manufacturing equipment.
Medical Equipment
Precision gear components for medical devices, surgical instruments, diagnostic equipment, and laboratory automation systems.
Gear Manufacturing FAQ
Common questions about precision gear manufacturing, materials, processes, and working with Rapzo.
Gear hobbing and CNC machining are among the most common methods because they provide high precision and efficient production for many gear types. Gear hobbing is particularly effective for producing spur and helical gears in volume, while CNC machining offers flexibility for custom and complex gear geometries.
Alloy steel is commonly used for its strength and wear resistance, while stainless steel, brass, and engineering plastics are selected for more specialized applications. The best material depends on the load requirements, operating environment, speed, and whether corrosion resistance or weight reduction is a priority. Rapzo's engineering team can advise on material selection based on your specific application.
Gear machining creates the basic tooth profile using processes such as hobbing, milling, or turning. Gear grinding is used as a finishing process to achieve higher precision, smoother surfaces, and tighter tolerances — particularly after heat treatment when the gear material has hardened. Grinding is essential for gears that must operate at high speeds or under heavy loads where dimensional accuracy and surface quality are critical.
Yes. Rapzo supports custom gear manufacturing based on technical drawings, CAD files, and application-specific requirements. Our engineering team reviews each project to confirm manufacturability, tolerances, and material suitability before production begins. We support both prototype quantities and production batch orders.
Start Your Gear Manufacturing Project Today
If you are developing a new mechanical system or upgrading an existing product, Rapzo provides reliable gear manufacturing solutions tailored to your engineering requirements.
From prototype development to production manufacturing, our team is ready to support your project with precision, consistency, and responsive service.
